Product Details:
|
| Main Material: | Rubber+Metal | Product Name: | Double Convoluted Air Spring |
|---|---|---|---|
| Net Weight: | 3.89 Kg | Package Dimension: | 24*24*24 Mm |
| Bellows Type: | Double Convoluted | Cross References: | W01-358-6935 |
| Operation: | Gas-filled | Plate Dia: | 160mm |
| High Light: | Contitech Rubber Truck Air Spring,W01-358-6935 Truck Air Spring,FD200-19499 Truck Air Spring |
||
Steel And Rubber truck air spring Firestone W01-358-6935 Contitech FD200-19499
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
Features
Benefits
Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components
Manufacturer: Firestone
Double Convoluted Air Bag
About Yiconton
We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

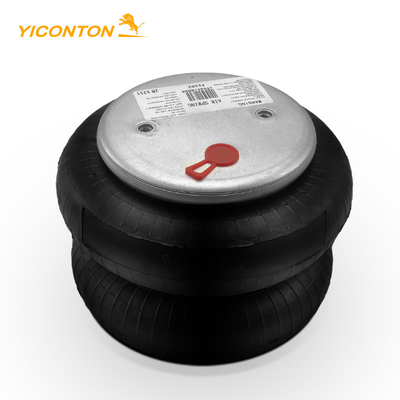

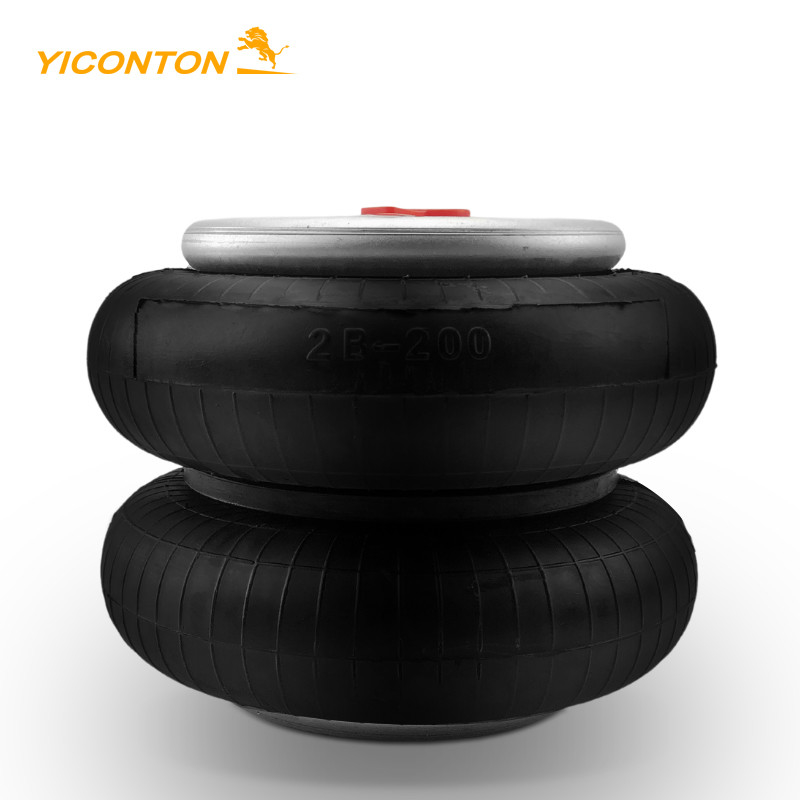

Product picture
